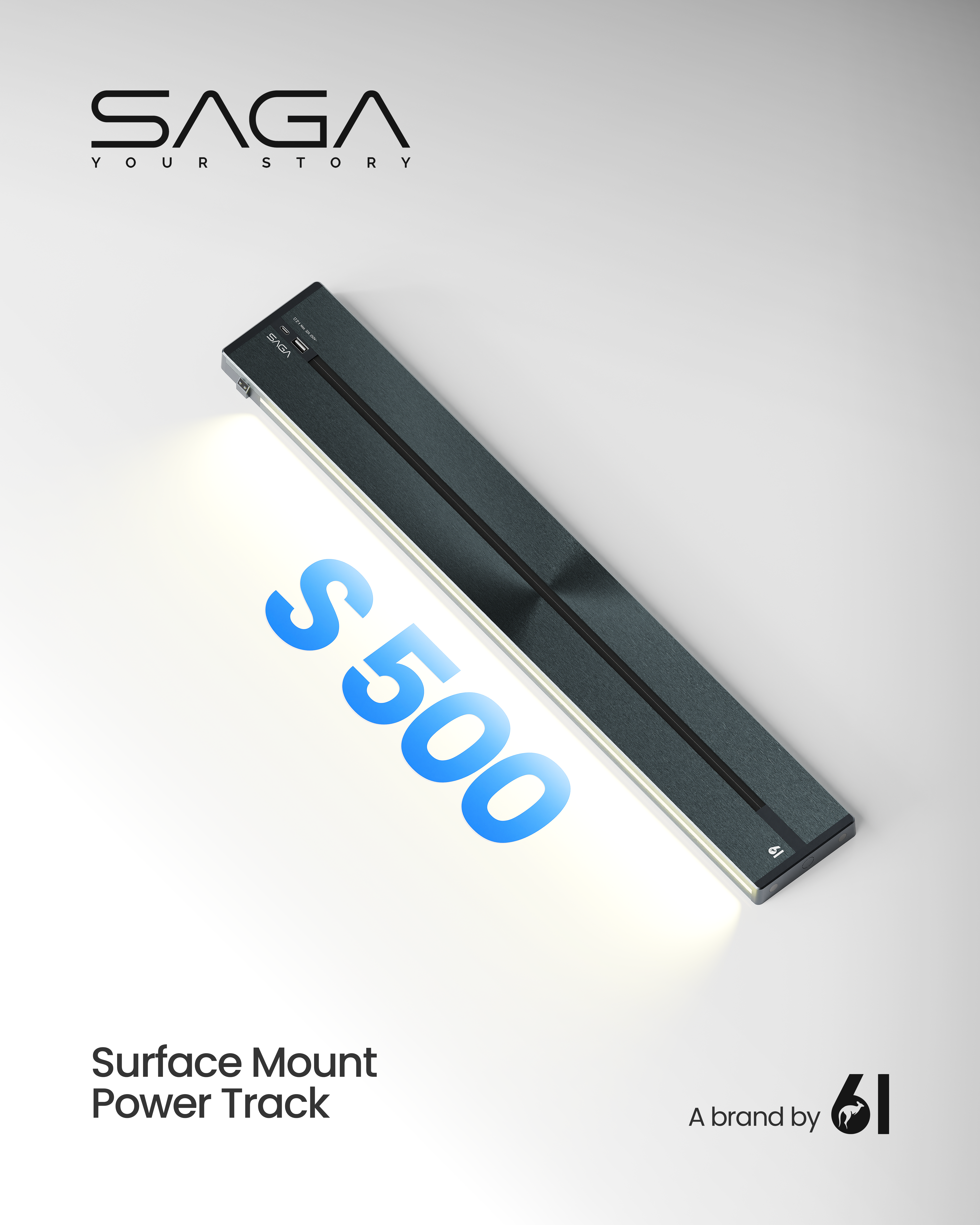

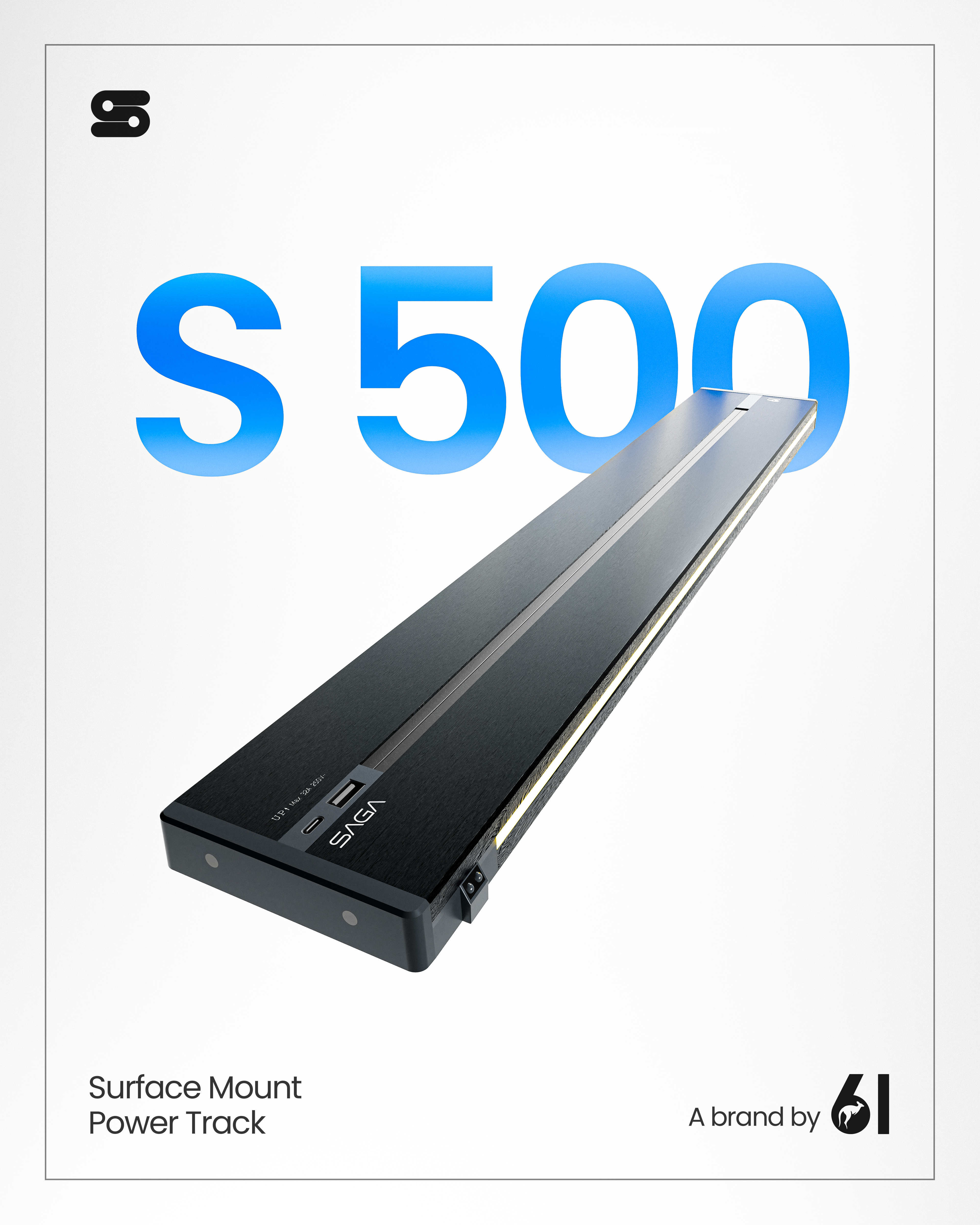

Surface Mount Power Track 500 mm with Built-in Motion-Sensing LED

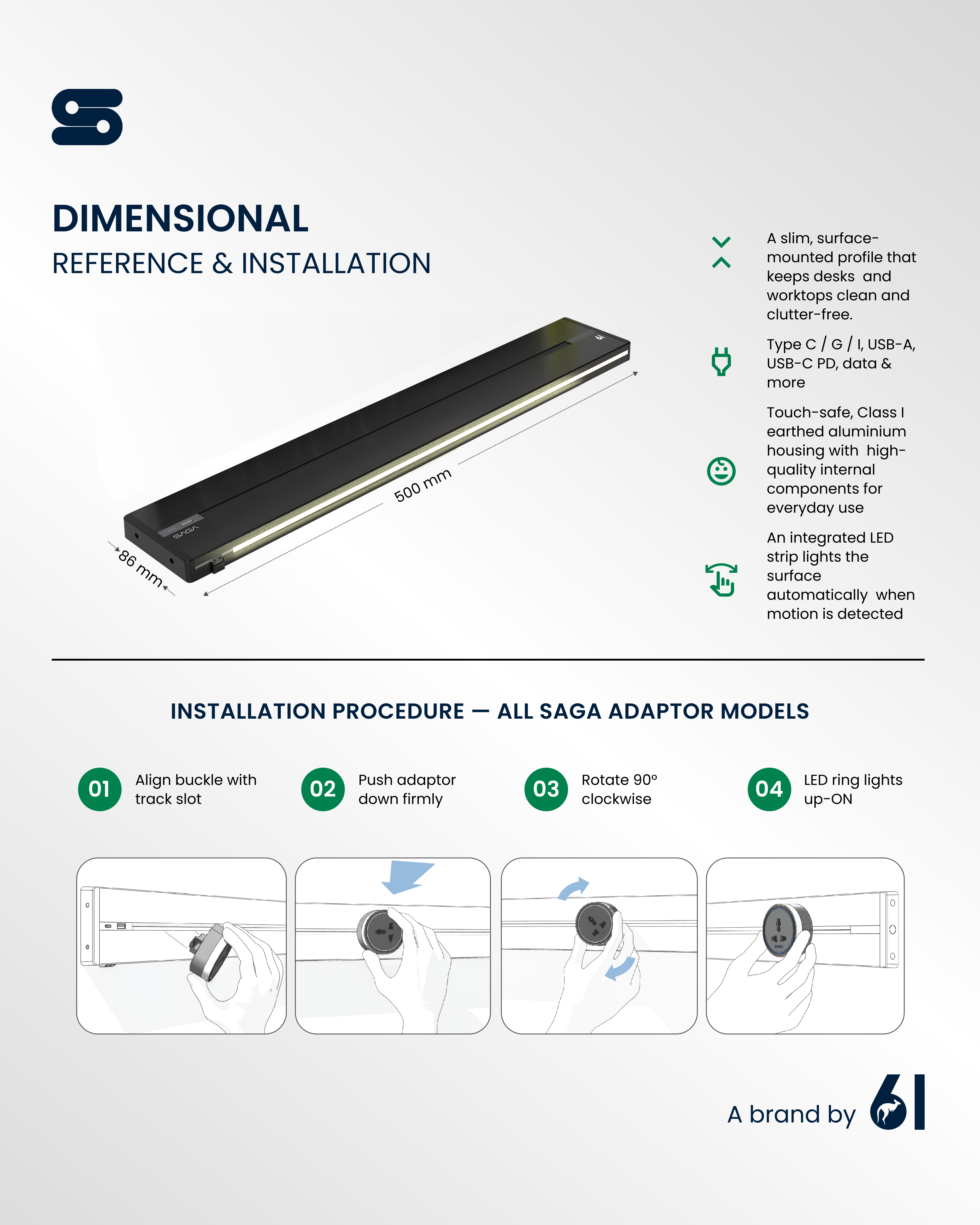

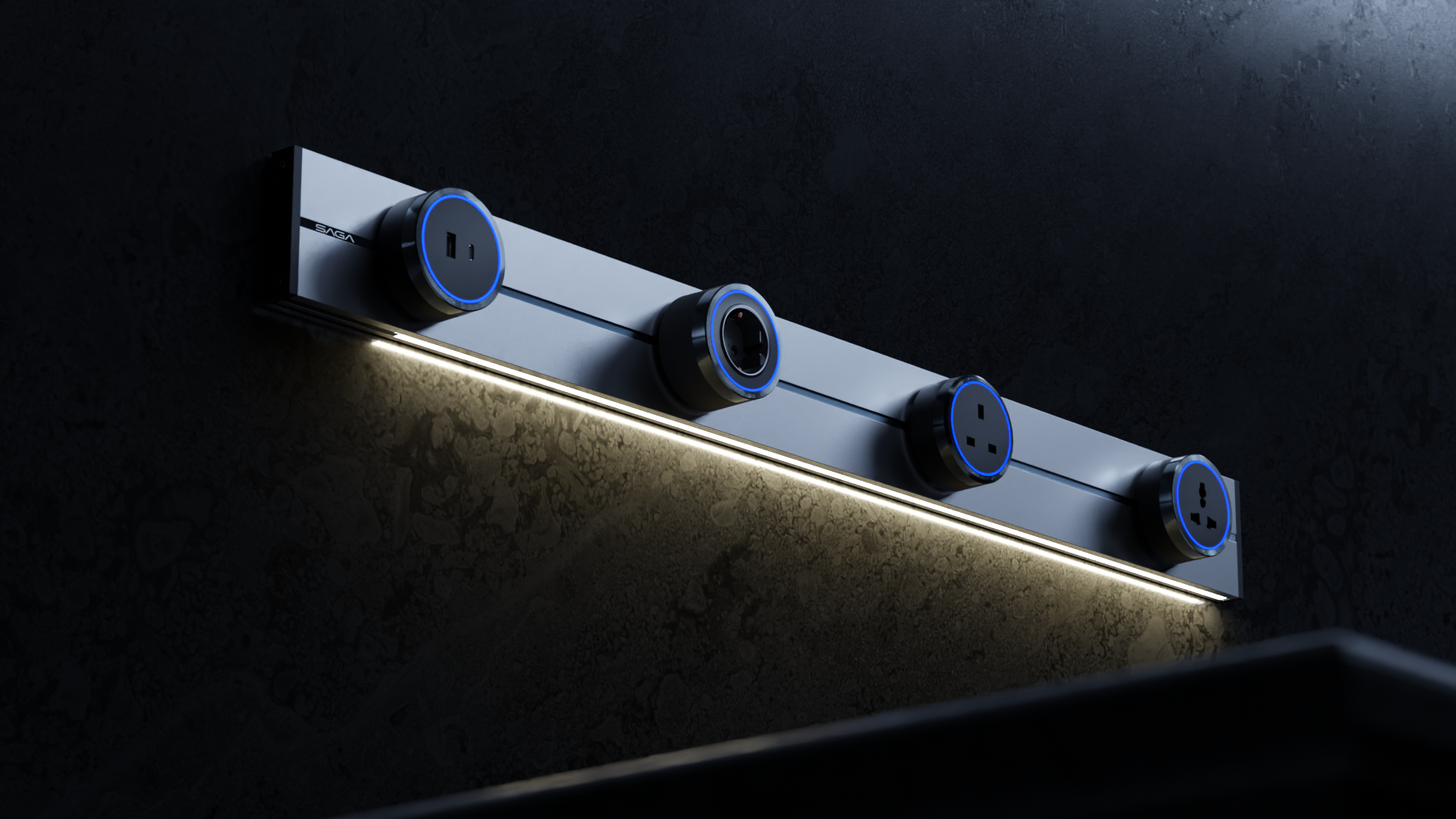

The SAGA S500 is a compact 500 mm surface-mounted power track that brings flexible, modular power to desks, worktops and walls. Slide up to 5 adaptors anywhere along the rail and light your space with the built-in motion-sensing LED.

Track Length: 500 mm Adaptor Capacity: Up to 5 Rated Voltage: 250 V AC (single phase) Rated Current: 32 A Rated Power: 8,000 W (8 kW) max continuous Frequency: 50 / 60 Hz Track Width: 86 mm Profile Height: 19 mm (above surface) Adaptor Pitch: 100 mm centres Weight: ~1.2 kg IP Rating: IP20 · touch-safe (1 mm probe) Dielectric Strength: ≥ 2,000 V AC / 1 min Insulation Resistance: ≥ 5 MΩ @ 500 V DC Service Life: ≥ 15 years / ≥ 10,000 insertions Compliance: IEC 60884 · IS 1293 · IS 732 · RoHS 2011/65/EU

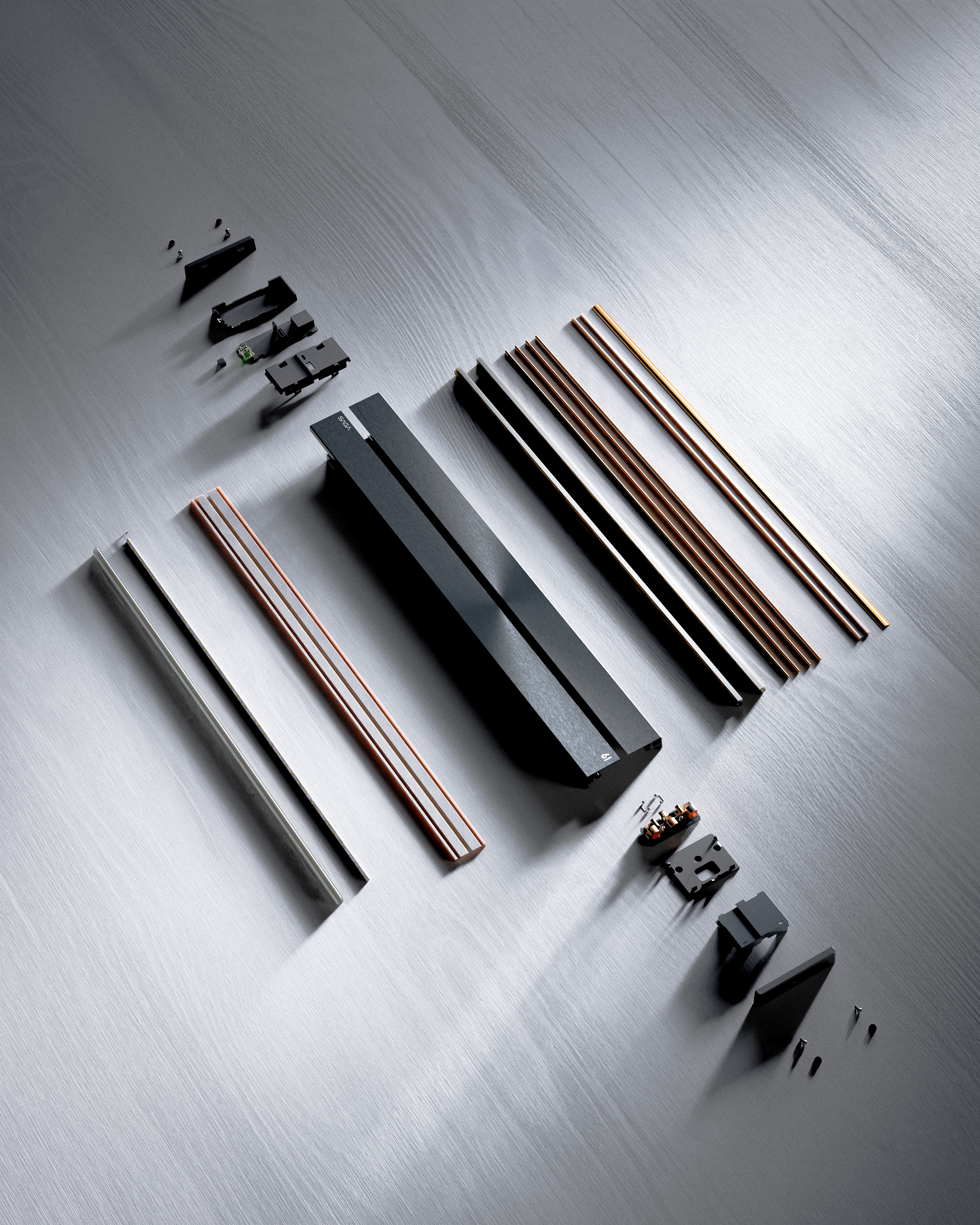

Track Body: Extruded aluminium alloy 6063-T5 — hard-anodized finish (Silver / Space Grey / Matte Black) Busbars: High-conductivity electrolytic copper (≥ 99.9% purity) — tin-plated contacts Busbar Insulation: Flame-retardant rubber / XLPE — continuous along full track length End Caps: UL 94 V-0 flame-retardant thermoplastic — snap-fit Mounting Hardware: Stainless steel M4/M5 fasteners — corrosion resistant RoHS 2011/65/EU compliant · REACH — no SVHC above 0.1% Care: Dry or damp cloth on anodized surface. No abrasive cleaners or solvents near the slot. Annual check: Earth continuity (< 0.1 Ω) + insulation resistance (≥ 5 MΩ) for commercial installs.

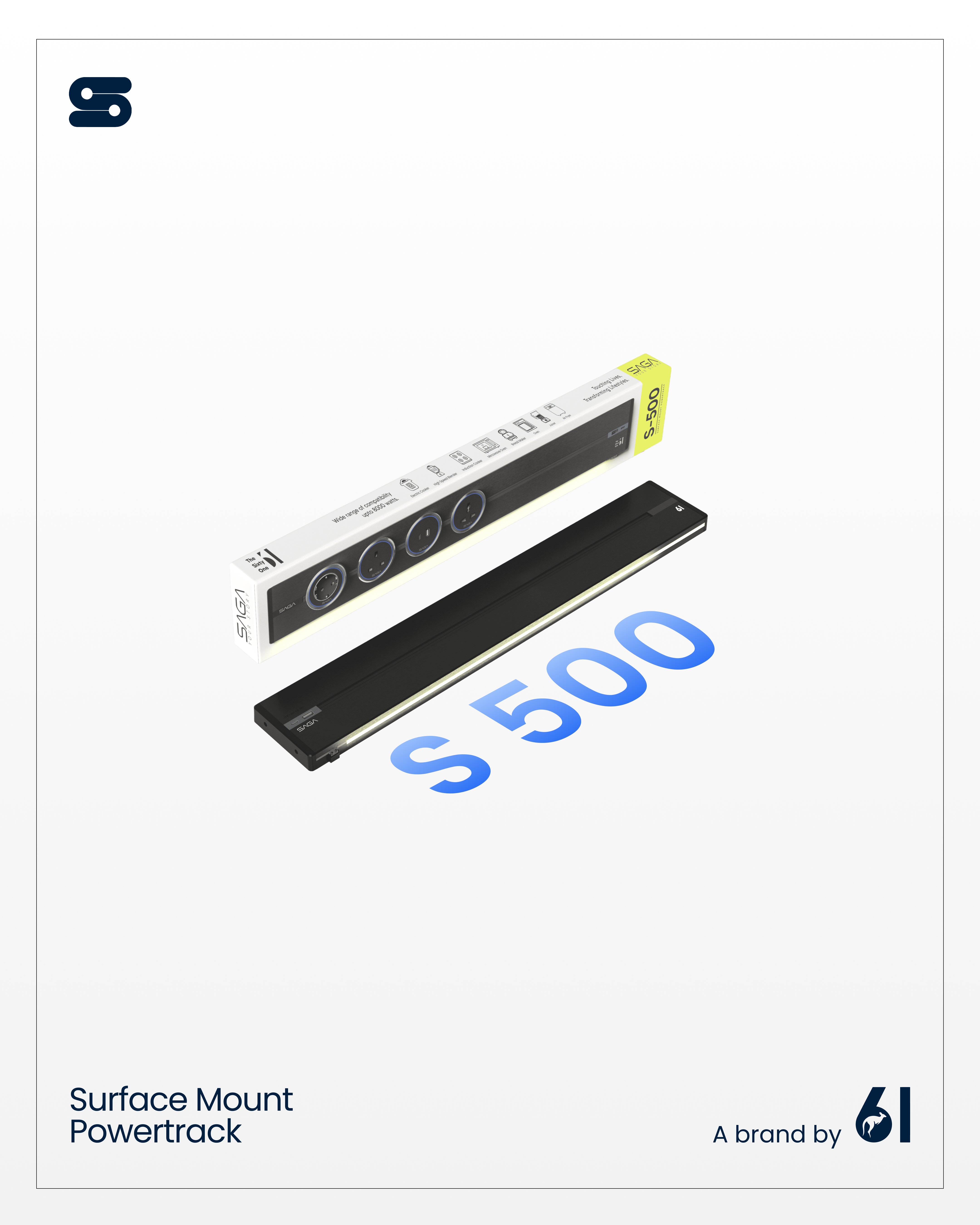

• 1 × S500 Surface Power Track (500 mm)
• 1 × Mounting Hardware Kit (M4/M5 screws + end brackets)
• 1 × Wiring / Installation Guide
• 1 × Warranty Card (2 Year)

• Brand: SAGA by 61
• Designed by: 61, Australia
• Country of Origin: China (Designed in Australia)
• Warranty: 2 Year Warranty
• Standards: IEC 60884 · IS 1293 · IS 732 · RoHS 2011/65/EU
• Adaptor System: SAGA proprietary quarter-turn twist-lock
• Recommended MCB: 32 A Type B/C upstream + 30 mA RCCB
